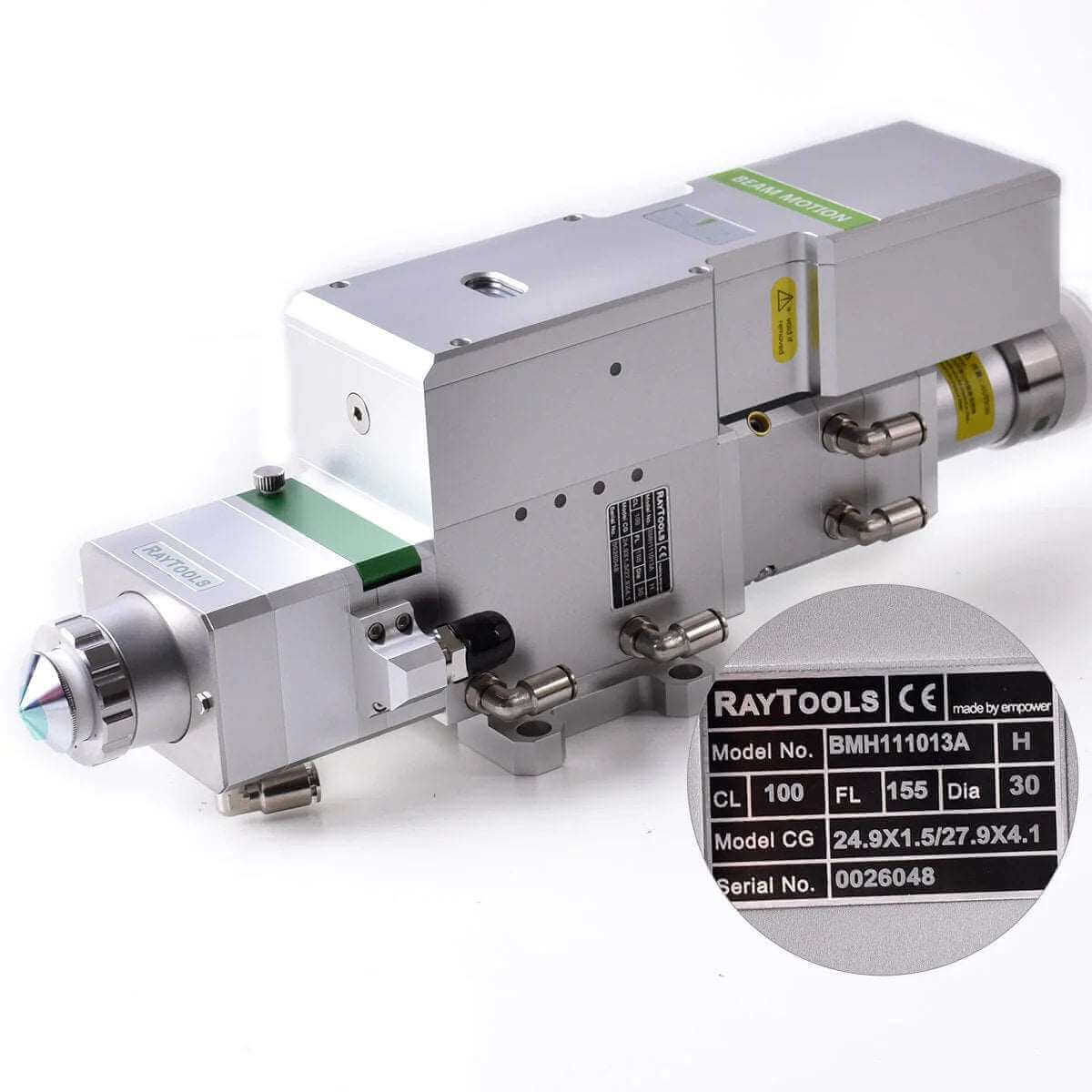

Supporting electric auto-focus adjustment, is designed for medium/high power of laser cutting. With sensor unit, controlling unit and driving unit integrated inside, it is a wonderful solution for achieving complete automatic cutting.

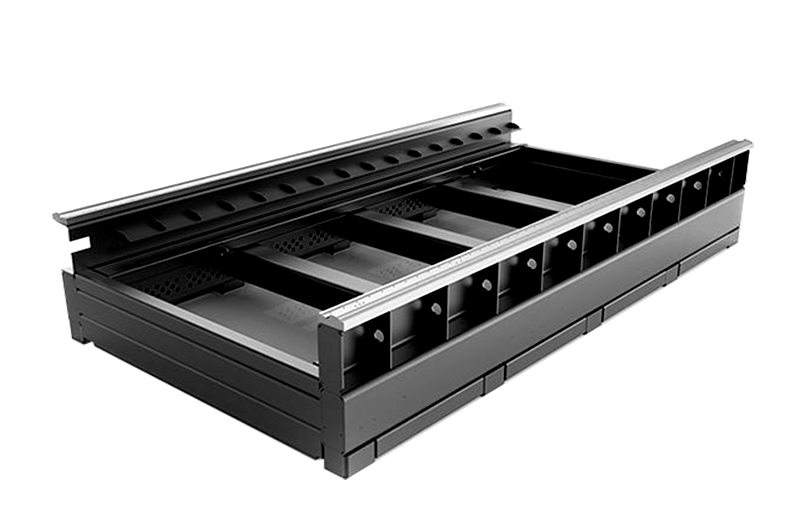

Made with aerospace aluminum, extruded by 4800 ton extrusion press, reaching T6 hardness after aging treatment. High stability, light weight, corrosion resistance, moving speed up to170m/min, acceleration speed up to 1.8G.

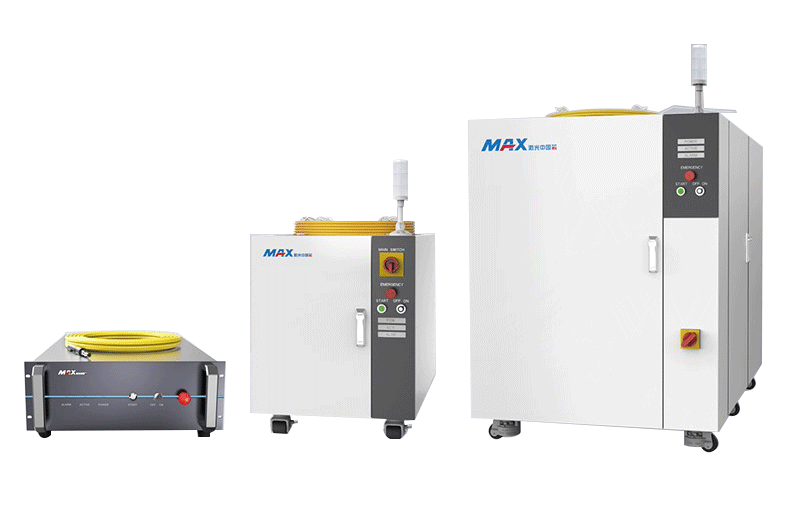

The third-generation CW fiber laser source
Adopt water cooling and modular design, highly-integrated system, free of maintenance, high reliability, high energy density, high beam quality and longer service life, maintenance-free operation for laser cutting.
Technical Parameter
| Power |
1000W-4000W |
| Positioning Accuracy |
±0.03mm |
| Repeat Positioning |
±0.015mm |
| Repeat positioning accuracy |
±0.015mm |
| Max Acceleration |
1.2G |
| Operating Speed |
100M/MIN |
| Laser Source |
IPG/Raycus/MAX |
