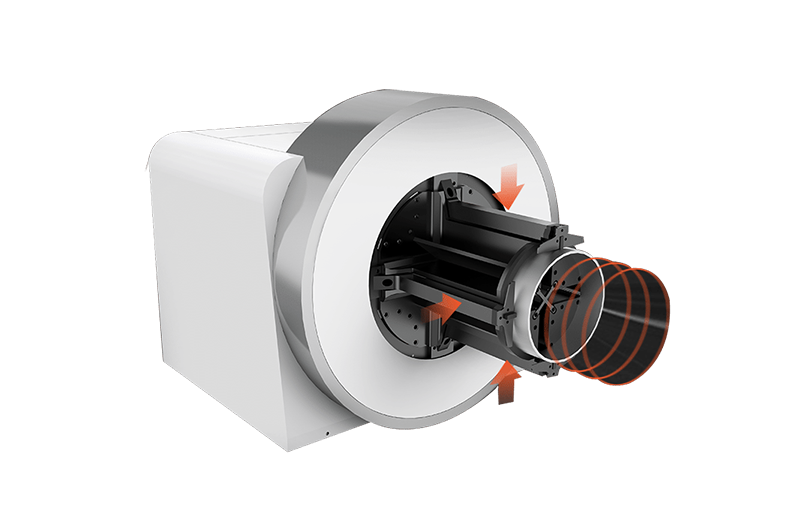

The chuck can automatically center when holding the work piece, pneumatic clamp, large and stable clamp strength, ensure cutting accuracy; special support pallet, avoid sagging deformation, improving cutting accuracy and extend the chuck life.

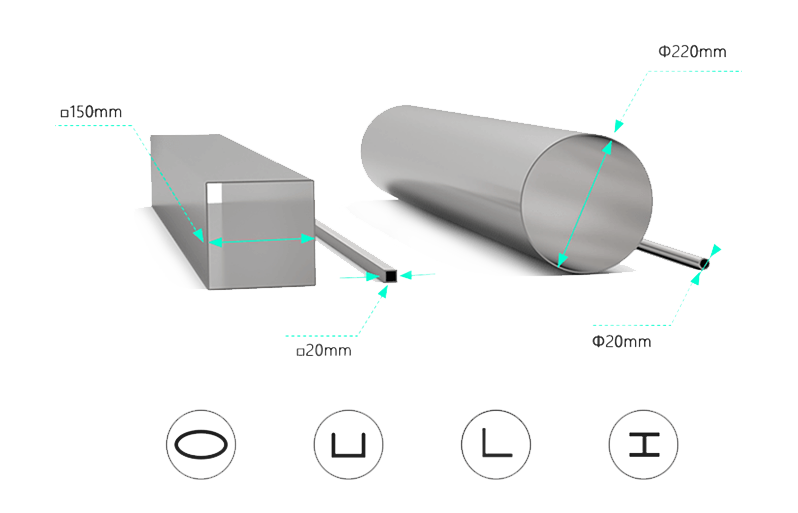

Wide range of pipe clamping, the maximum clamping diameter is 350mm, round pipe Ø20-220mm, square pipe Ø 20-150mm, can cut various shapes such as I-beam, channel steel, angle steel, oval pipe, waist-shaped pipe, polygonal pipe, etc.

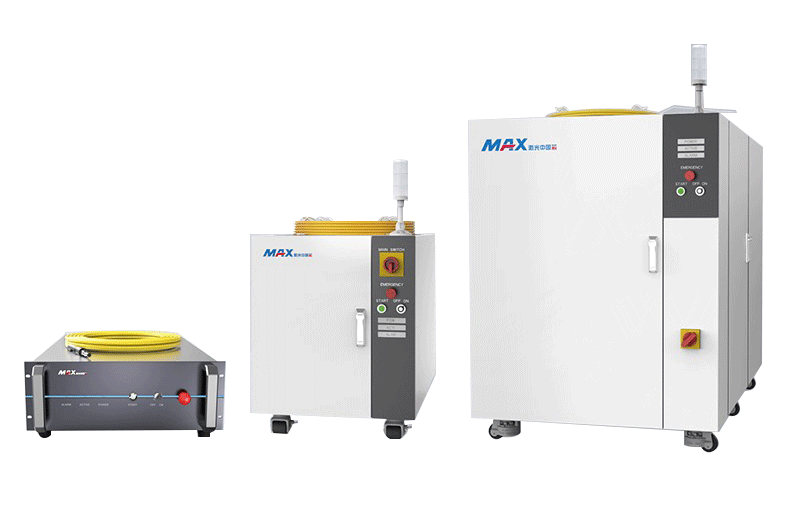

The third-generation CW fiber laser source
Adopt water cooling and modular design, highly-integrated system, free of maintenance, high reliability, high energy density, high beam quality and longer service life, maintenance-free operation for laser cutting.
Technical Parameter
| Diameter |
Φ10-Φ220mm |
| Length |
6000mm |
| Power |
1000-3000w |
| Processing Thickness |
10mm |
| Mechanical Accuracy |
±0.10mm |
| Laser Source |
IPG/Raycus/MAX |
